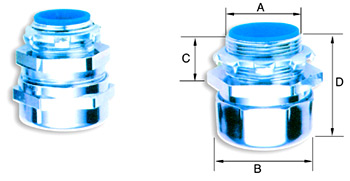

| TYPE：YCB 0°
电镍铬尺寸规格表 |
型号 |
规格 |
Dimension(mm) |
牙制 |
包装数量 |
l.D |
A |
B |
C |
D |
YCB-03B |
3/8″ |
10.7 |
20.9 |
30.0 |
15.0 |
54.0 |
PF1/2″ |
50 |
YCB-04B |
1/2″ |
14.5 |
20.9 |
35.5 |
15.0 |
57.0 |
PF1/2″ |
50 |
YCB-06B |
3/4″ |
19.3 |
26.4 |
43.0 |
15.0 |
67.0 |
PF3/4″ |
50 |
YCB-10B |
1″ |
24.4 |
33.1 |
48.0 |
21.5 |
73.0 |
PF1″ |
25 |
YCB-12B |
11/4″ |
33.4 |
41.9 |
58.0 |
22.5 |
93.5 |
PF11/4″ |
20 |
YCB-14B |
11/2″ |
38.0 |
47.5 |
64.2 |
25.0 |
103.0 |
PF11/2″ |
10 |
|
| 电锌尺寸规格表 |
型号 |
规格 |
Dimension(mm) |
牙制 |
包装数量 |
l.D |
A |
B |
C |
D |
YZB-03B |
3/8″ |
10.7 |
20.9 |
30.0 |
15.0 |
54.0 |
PF1/2″ |
50 |
YZB-04B |
1/2″ |
14.5 |
20.9 |
35.5 |
15.0 |
57.0 |
PF1/2″ |
50 |
YZB-06B |
3/4″ |
19.3 |
26.4 |
43.0 |
15.0 |
67.0 |
PF3/4″ |
50 |
YZB-10B |
1″ |
24.4 |
33.1 |
48.0 |
21.5 |
73.0 |
PF1″ |
25 |
YZB-12B |
11/4″ |
33.4 |
41.9 |
58.0 |
22.5 |
93.5 |
PF11/4″ |
20 |
YZB-14B |
11/2″ |
38.0 |
47.5 |
64.2 |
25.0 |
103.0 |
PF11/2″ |
10 |
YZB-20B |
2″ |
48.8 |
59.0 |
86.6 |
25.0 |
126.0 |
PF2″ |
10 |
YZB-24B |
21/2″ |
59.4 |
75.4 |
103.0 |
25.0 |
165.0 |
PF21/2″ |
|
YZB-30B |
3″ |
75.8 |
87.5 |
120.0 |
26.0 |
189.0 |
PF3″ |
|
YZB-40B |
4″ |
97.6 |
113.0 |
157.0 |
32.0 |
229.0 |
PF4″ |
|
YZB-50B |
5″ |
123.0 |
136.0 |
175.0 |
40.0 |
115.0 |
PF5″ |
自定 |
YZB-60B |
6″ |
148.0 |
162.0 |
200.0 |
50.0 |
120.0 |
PF6″ |
自定 |
|
|
| |
| |
|
